S640/ S960 / S1390 / S1610 / S1810

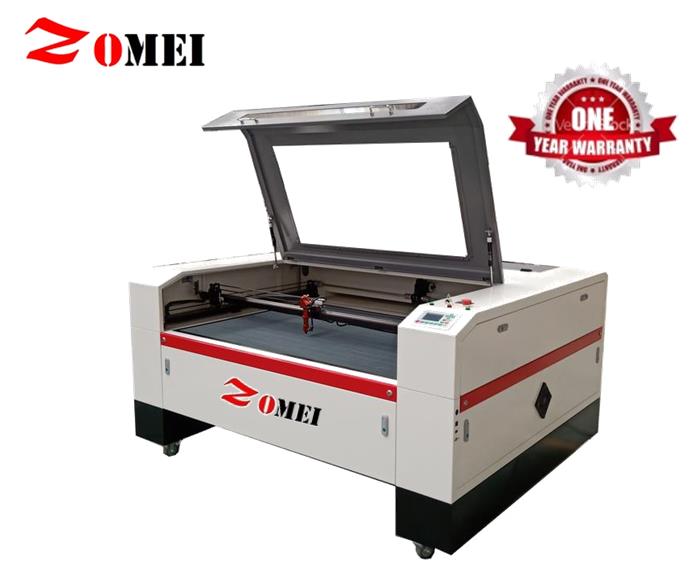

SINGLE HEAD LASER CUTTING MACHINE
Keywords:
2019 New design, China Factory / Professional China Manufacturer CE certificate, 1390 / 1325 / 9060 / 1080 / 1610 Single head, Laser CO2 Laser cutting machine / Laser CO2 Laser engreving machine / CO2 Cnc Laser cutter for Acrylic , Leather , Rubber,Plasic, MDF, plywood ,Wood, glass, fabric,cloth,textil,garment, 60W 80W 100W 120W 130W 150W, High speed
1. Materials / 可切割的材料
Acrylic,crystal, PVC plate, plastic,wood products,bamboo,garment,leather,paper,rubber, etc.
2. Industries / 可应用的行业
Garment,leather,cloth toys,embroidery patch cutting,mould,arts and crafts,advertising,decoration,packaging print and so on.
3.Features / 机器优点
a. Peract technique,high cutting precision and speed are the major features for this series machines ,together with the humanity operation system,the superiority of the machines are embodied.
b. DSP high speed processing technique realizes operation without computer control.
c. With USB flash data reader and save function,and the system can save and memorize data automatically.
d. laser power and cutting speed are adjustable,with multiple route optimization function,stable and reliable working performance,this series mechines is the first choice for no-metal material processing industries.
4. Specification
| Model: | S640/ S960 / S1390 / S1610 / S1810 |
| Cuttinging area: | 600x400 / 900*600 / 1300x900 / 1600x1000 / 1800*1000mm |
| Laser Power: | 60 / 80 / 100 / 130 / 150W (Optianal) |
| Data transfer mode: | USB data cable to computer; USB flash disk |
| Support file: | AI,PLT,DXF,BMP,DST, etc |
| Compatible Software: | CorelDraw , AutoCAD , Photoshop |
| Cooling method: | Industry Water Chiller: CW3000, CW5000, CW5200 |
| location precision: | <0.01mm |
| Power supply: | AC 220V±10%, 50 / 60Hz 10AMax |
| working Environment: | Temperature:0~35℃. Humidity:30~80%(No condensate water) |
*1in=25.4mm * Different sizes can be made accordingly.
