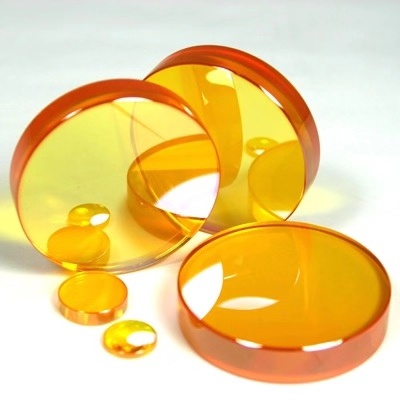

ZnSe Laser Focus Lens
CO2进口激光机聚焦镜片
1. Focus Lens Parameters / 聚焦镜片参数
Diameter: 15mm / 18mm / 19.05mm / 20mm / 25mm
Focus Length: 38.1mm / 50.8mm / 63.5mm / 76.2mm / 101.6mm / 127mm
Materials: ZnSe(USA)
Structure: Meniscus
2. Product Description / 产品简介
ZnSe has been made by means of import CVD from USA, and this material has low absorbance.
The lens can can with stand high power density and the surface coating is solid , not easy to fall off and wipe-resistant. After AR-coating has been coated on double-side of imported ZnSe, the transmissivity of the wavelength 10.6um, which is commonly used in CO2 laser industry, can reach 99.5%. We have optimized the design from two sides – diffraction and aberration and have developed a series of products with the minimum actual focal spot diameter in the case of the same focal length. We can respectively design and produce the products according to different requirements of the customers for focus length, rear focus length, lens aperture, the diameter of the incident ray and so on.
3. Common processing requirements for the focus lenses.
Designed wavelength: 10.6um
Focus length tolerance: ±1%
Appearance tolerance: 0/-0.1mm
Thickness tolerance: ±0.1mm
Finish: 20-10
Eccentric:<3′
Effective aperture: >90%
Chamfer:<0.2×45°
Coating Film: 10.6um AR-coating
4. Application / 应用
Application: Laser engraving ,cutting and marking etc.
Applicable meterial: leather, cloth, glass, acrylic, wood, color board ect.
FAQ
Q1: What’s the delivery?
We offer the door to door services by DHL air expression. We can also offer other trasportation ways according to your demands. Such as DHL, UPS, TNT, FEDEX…
Q2: What’s the delivery time?
The time period is 1-3 days.
Q3: What’s the package?
Carton case
Q4: What’s the payment method?
T/T, WESTERN UNION
