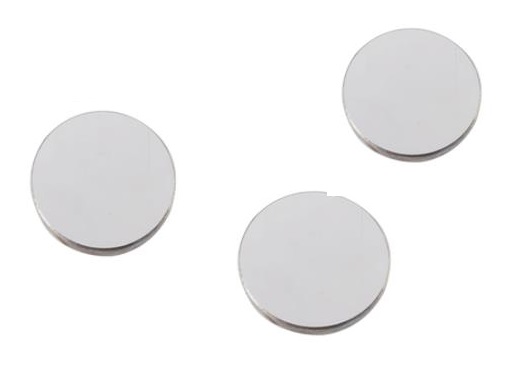

Co2 Laser Reflect Mirror Si

Co2 激光切割机反射镜

1. Specification / 参数

Material : Silicon

Diameter : 20mm/0.78inch, 22mm/0.86inch, 25mm/1inch, 30mm/1.18inch,

Thickness(mm) : 3mm

Diameter : 38.1mm/1.5inch

Thickness(mm) : 5mm

2. Production description / 产品描述

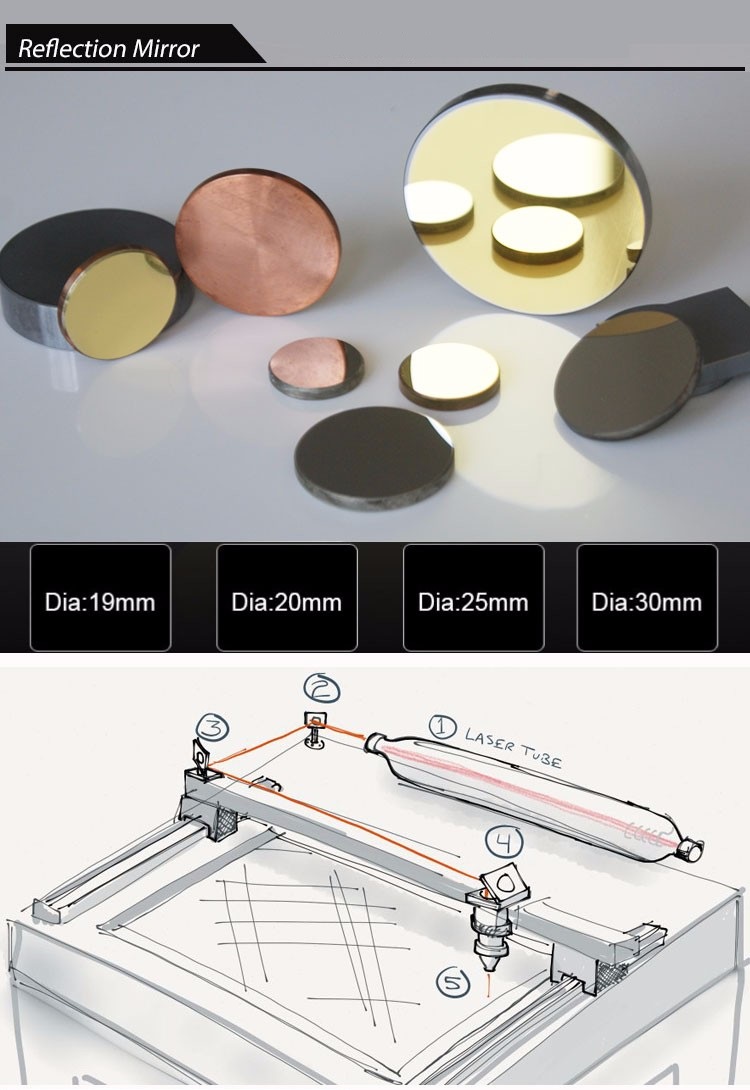

The reflective mirror is usually used as the end miror or the folding reflective mirror in the laser cavity during the light transmission,while it's be acted as the role of the beam turn-back mirror outside the laser cavity. The base material of the feactive mirror is silicon, copper,Mo.

The silcon is the normal coating material and it has the advantage of low cost,strong durability and stable thermal properties.

The copper is usually uesed in the high power CO2 laser owing to it's high thermal conductivity.

Washing Procedure
