V610 / V810 / V812 ; VA610 / VA810 / VA812

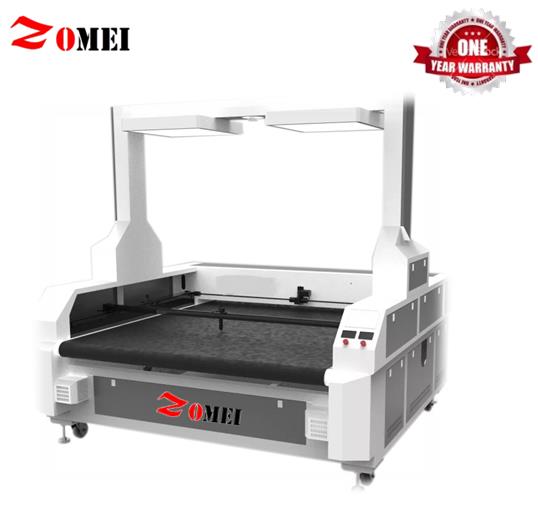

INTELLIGENT VISION LASER CUTTING MACHINE
1. Materials / 可切割的材料
Mesh,suede,synthetic leather,linen,non-wovens,chemical fiber,etc.
2. Industries / 可应用的行业
Printing garments, printing shoes upper, fly weaving vamp,weaving pattern,embroidered trademark, sublimation.
印花服装，鞋面印花，飞织鞋面，编织花纹，绣花商标等
3. Features / 机器特点

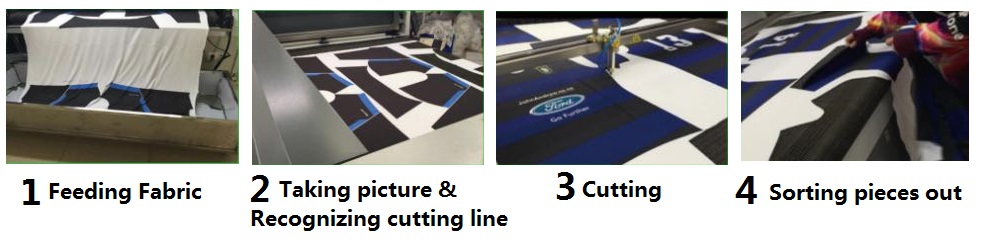

a. Four Cutting Workers Replaced.
b. Automatic Material Feeding.
c. Auto Vision Recognition Software Running.
d. Zero Cut Design Setup Time.
e. Perfect Distorted Patterns Cutting.
f. Hot Seal on Fraying Cutting Edge.
g. Cutting heads,double X axis,working separately at the same time.?
MODEL:
| V610 / V810 / V812 ; VA610 / VA810 / VA812 |
Cutting area:
| 1600*1000 / 1800*1000 / 1800*1200 mm |
Laser power:
| 100W / 130W / 150W, CO2 glass tube |
| Laser head: | One head / Asynchronous Dual-heads (Optional) |
| Data transfer mode: | USB data cable to computer; USB flash disk |
| Support file: | AI,PLT,DXF,BMP,DST, etc |
| Compatible Software: | CorelDraw , AutoCAD , Photoshop |
| location precision: | <0.01mm |
| Power supply: | AC 220V±10%, 50 / 60Hz 10AMax |
| working Environment: | Temperature:0~35℃. Humidity:30~80%(No condensate water) |
*1in=25.4mm * Different sizes can be made accordingly.
