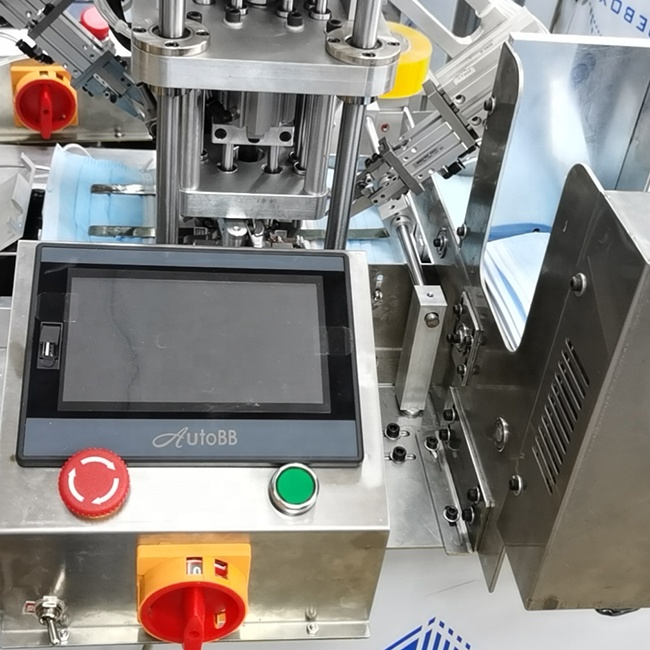

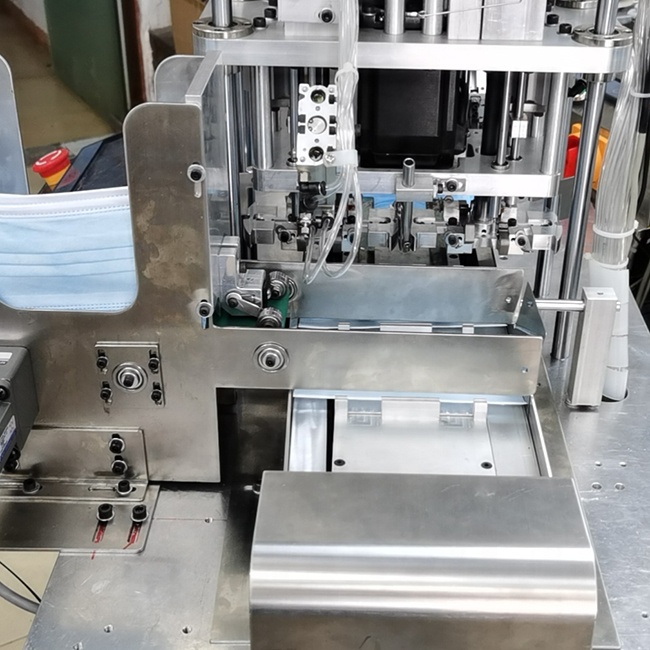

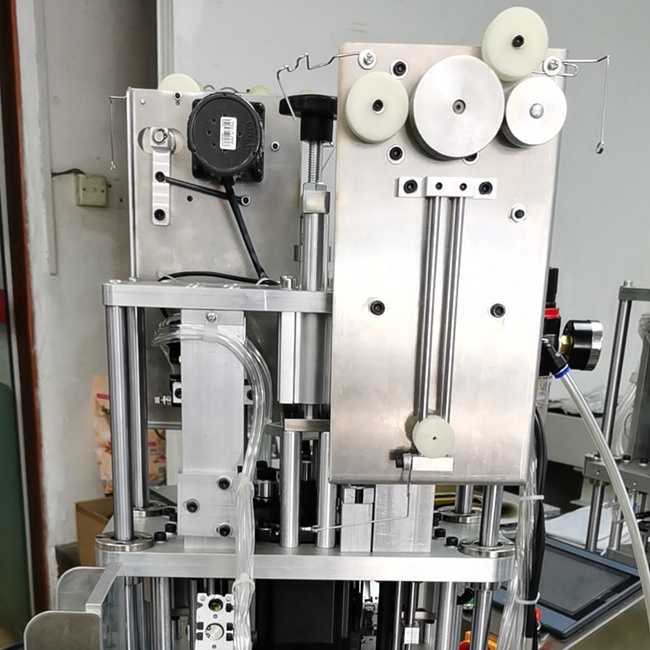

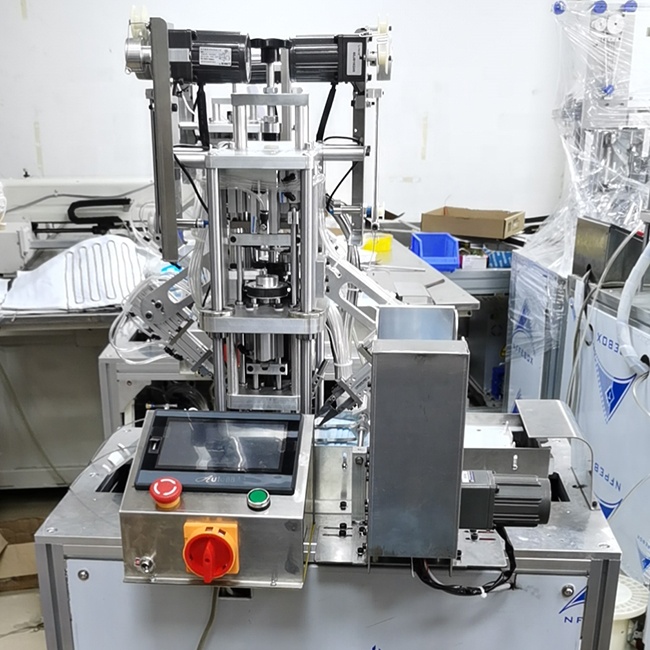

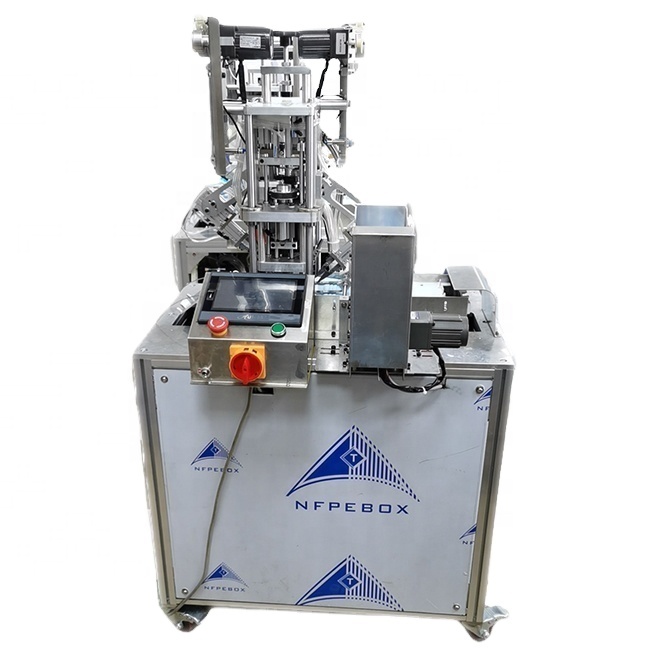

Full automatic mask ear loop mini welding machine
Speed: 35-40 pcs/min
Small size, suit transportation by air, save cost.
Introduction:
1 .Four-point synchronous welding, driven by servo motor, stable and efficient.
2. The length of mask ear band can be adjusted, round band and flat band can be customized.
3. Automatic mask body feeding device, 6 machines just need 1 operator, saving labor cost.
4. Mini type, small size, exquisite, export free, 85*65*3625px, 150kg, (after package: 96*96*4000px, 195kg). Simple operation, touch screen Chinese & English.
5. System adopts PLC, upgrade, update and optimize at any time.
Technical Parameters:
Model: | K1-02 |
Production capacity: | 35-40 pcs/minute pcs |
Voltage: | AC 110-380V |
Air pressure: | 3KG/CM2/0.3MPa |
Ultrasonic generators: | 20K / 2000W ( 2 pcs ) pcs |
G.W. | 150KG |
Dimension: | 850*650*1450mm |
Application:
Medical surgical flat masks ear loop band welding.
